Trend Indicators

Trend indicators help you identify the direction and strength of a market move. They smooth out price noise so you can focus on the underlying trajectory. Because they rely on historical averages, all trend indicators are lagging — they confirm a trend rather than predict it. Use them to align your trades with the dominant direction and to filter out counter-trend noise.

Weighted Moving Average (WMA)

Simple Moving Average (SMA)

Exponential Moving Average (EMA)

Zero-Lag EMA Envelope (ZLEMA)

EMA Trend Ribbon

SuperTrend

SuperTrend Clustering

Pulse Mean Accelerator (PMA)

Volume Weighted Trend (VWT)

Indicators at a glance

Indicator	Type	Warmup	Lag	When to use
Weighted Moving Average (WMA)	🔴 Lagging	period bars	≈ (period − 1) / 3 bars	When you need a moving average that reacts faster than SMA because it gives more weight to recent prices. Good for short-term trend following where responsiveness matters more than smoothness.
Simple Moving Average (SMA)	🔴 Lagging	period bars	≈ (period − 1) / 2 bars	The baseline moving average. Use it for straightforward trend detection (e.g. price above SMA 200 = bullish bias), as the foundation for Bollinger Bands, or as a benchmark to compare other MAs against.
Exponential Moving Average (EMA)	🔴 Lagging	period bars	≈ (period − 1) / 2 bars	The most popular moving average for active trading. Reacts faster than SMA to recent price changes, making it ideal for crossover systems, dynamic support/resistance, and as an input to other indicators like MACD and SuperTrend.
Zero-Lag EMA Envelope (ZLEMA)	🔴 Lagging	length bars	≈ 0 bars	When standard EMA lag is too high. ZLEMA compensates for the inherent EMA delay, giving you an almost zero-lag centre line with ATR-based bands for volatility envelopes.
EMA Trend Ribbon	🔴 Lagging	ema_max bars	≈ (ema_min − 1) / 2 bars	Visualize trend strength at a glance using a ribbon of multiple EMAs. When the ribbon fans out, the trend is strong; when it compresses, consolidation or reversal may be coming. Great for swing trading dashboards.
SuperTrend	🔴 Lagging	atr_length bars	≈ atr_length / 2 bars	A trailing stop and trend filter in one. Use it to determine trend direction and as a dynamic stop-loss level. Particularly effective on trending markets with clear directional moves.
SuperTrend Clustering	🔴 Lagging	atr_length bars	≈ atr_length / 2 bars	When you want the optimal SuperTrend factor selected automatically. K-means clustering finds the best multiplier from price data, removing guesswork from parameter tuning.
Pulse Mean Accelerator (PMA)	🔴 Lagging	max(ma_length, accel_lookback) bars	≈ ma_length / 2 bars	An acceleration-aware moving average that adapts its offset based on price momentum. Use it when you want a trend line that tightens during acceleration and loosens during deceleration.
Volume Weighted Trend (VWT)	🔴 Lagging	vwma_length bars	≈ vwma_length / 2 bars	Combines price trend with volume confirmation. Use it when you want trend signals that are validated by volume — useful for filtering out low-conviction moves.

Detailed descriptions

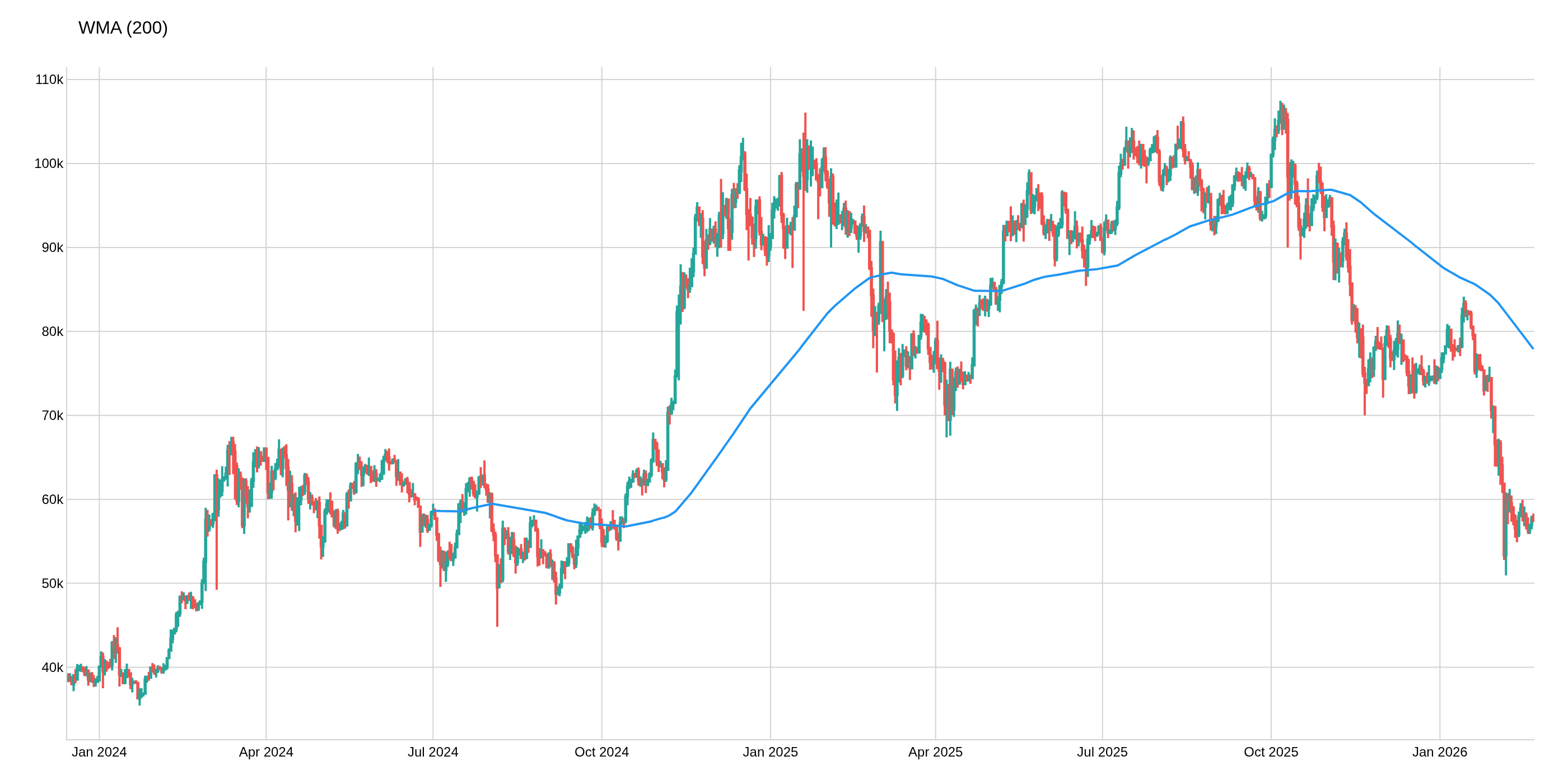

Weighted Moving Average (WMA)

🔴 Lagging — ≈ (period − 1) / 3 bars

Warmup: period bars (default: 200 bars (period=200))

When you need a moving average that reacts faster than SMA because it gives more weight to recent prices. Good for short-term trend following where responsiveness matters more than smoothness.

Simple Moving Average (SMA)

🔴 Lagging — ≈ (period − 1) / 2 bars

Warmup: period bars (default: 200 bars (period=200))

The baseline moving average. Use it for straightforward trend detection (e.g. price above SMA 200 = bullish bias), as the foundation for Bollinger Bands, or as a benchmark to compare other MAs against.

Exponential Moving Average (EMA)

🔴 Lagging — ≈ (period − 1) / 2 bars

Warmup: period bars (default: 200 bars (period=200))

The most popular moving average for active trading. Reacts faster than SMA to recent price changes, making it ideal for crossover systems, dynamic support/resistance, and as an input to other indicators like MACD and SuperTrend.

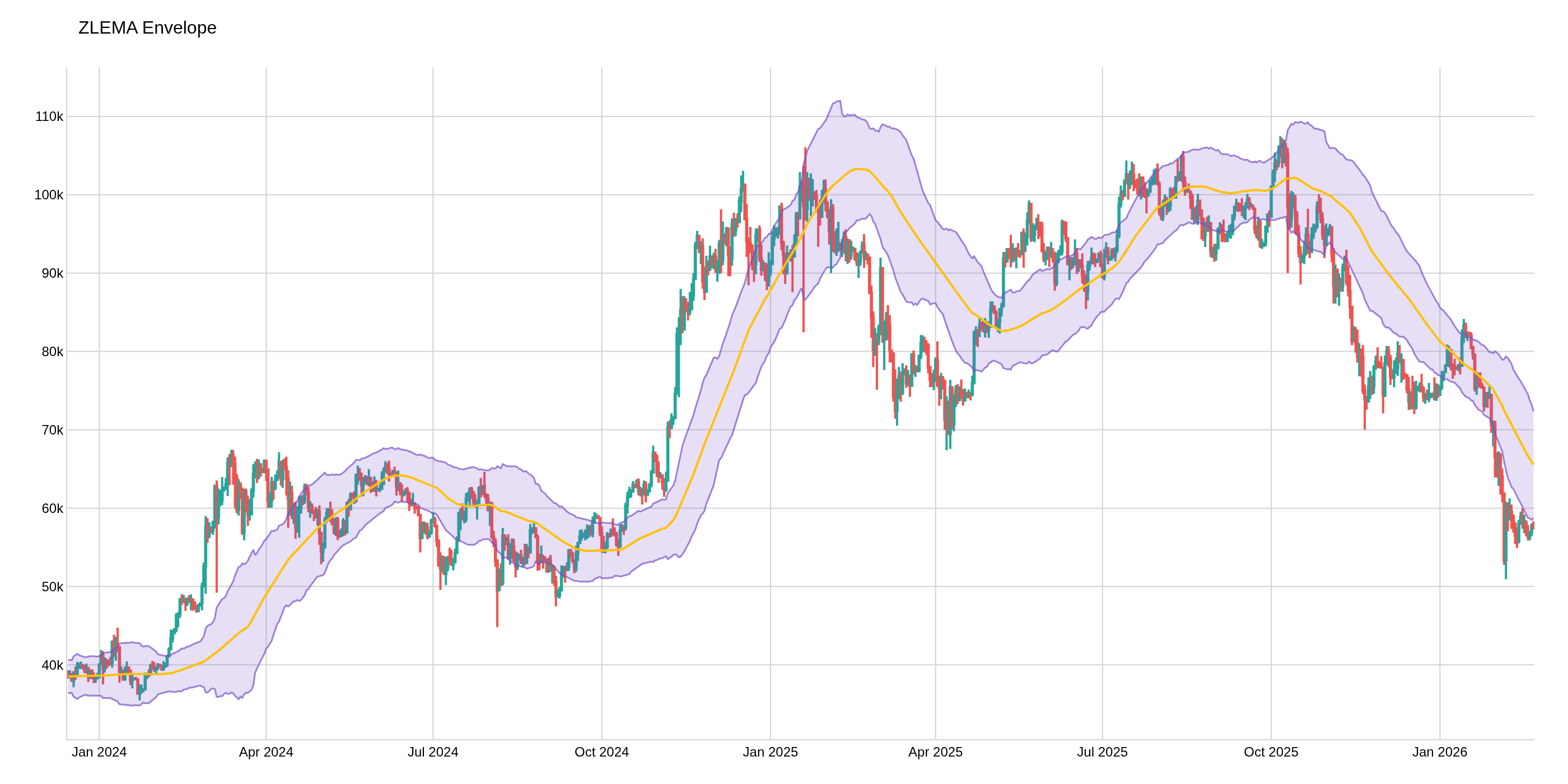

Zero-Lag EMA Envelope (ZLEMA)

🔴 Lagging — ≈ 0 bars

Warmup: length bars (default: 200 bars (length=200))

When standard EMA lag is too high. ZLEMA compensates for the inherent EMA delay, giving you an almost zero-lag centre line with ATR-based bands for volatility envelopes.

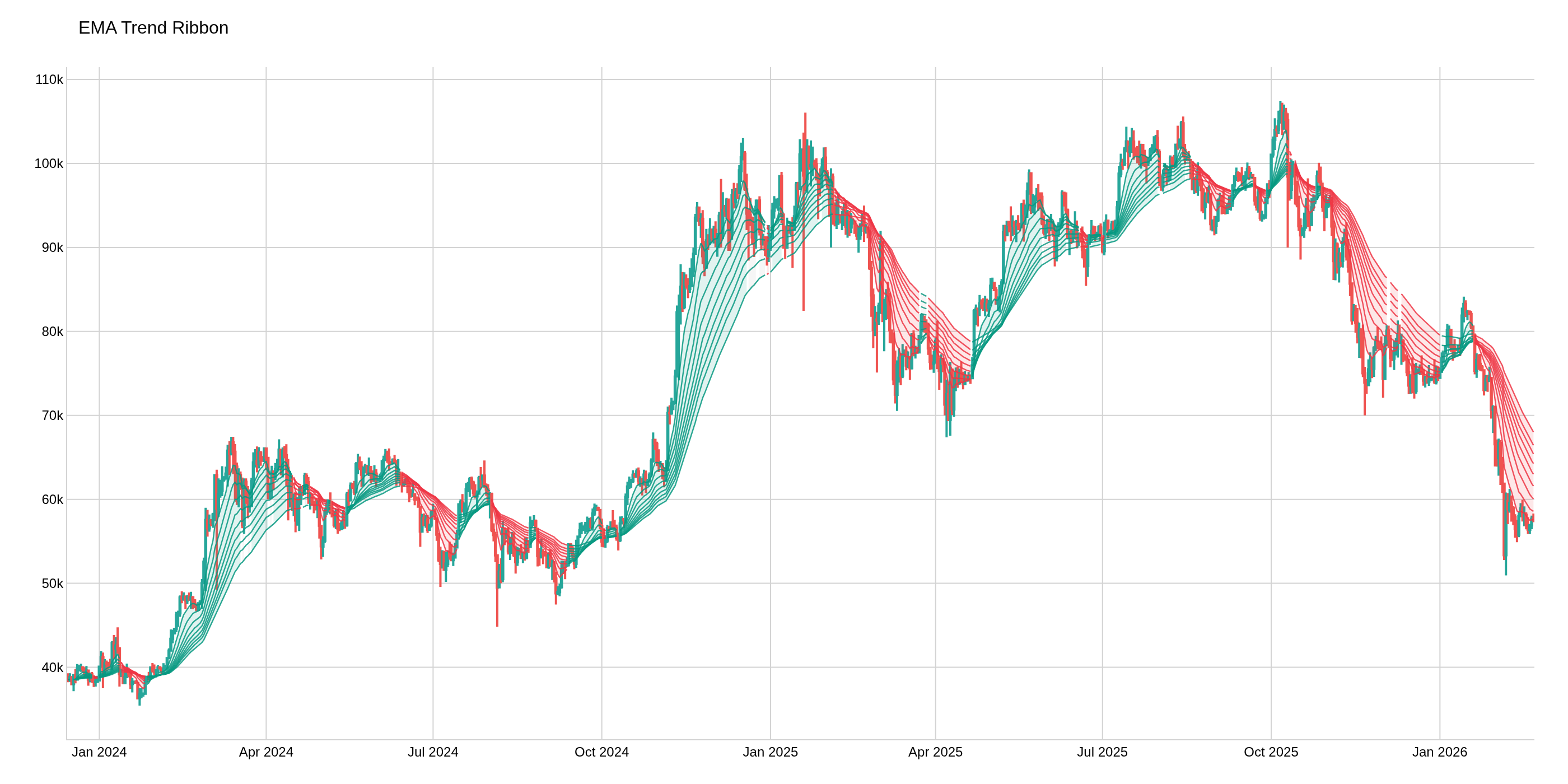

EMA Trend Ribbon

🔴 Lagging — ≈ (ema_min − 1) / 2 bars

Warmup: ema_max bars (default: 60 bars (ema_max=60))

Visualize trend strength at a glance using a ribbon of multiple EMAs. When the ribbon fans out, the trend is strong; when it compresses, consolidation or reversal may be coming. Great for swing trading dashboards.

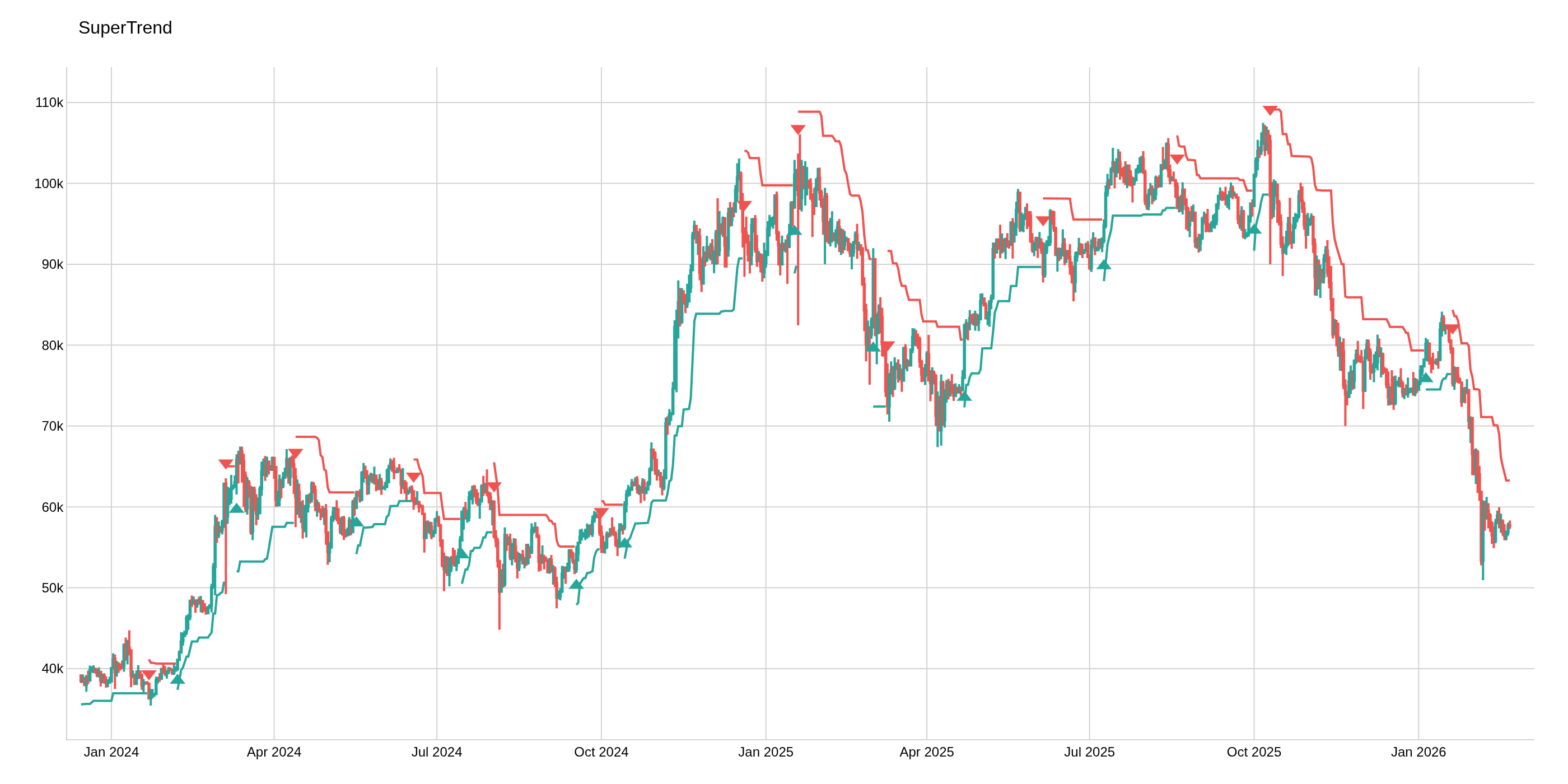

SuperTrend

🔴 Lagging — ≈ atr_length / 2 bars

Warmup: atr_length bars (default: 10 bars (atr_length=10))

A trailing stop and trend filter in one. Use it to determine trend direction and as a dynamic stop-loss level. Particularly effective on trending markets with clear directional moves.

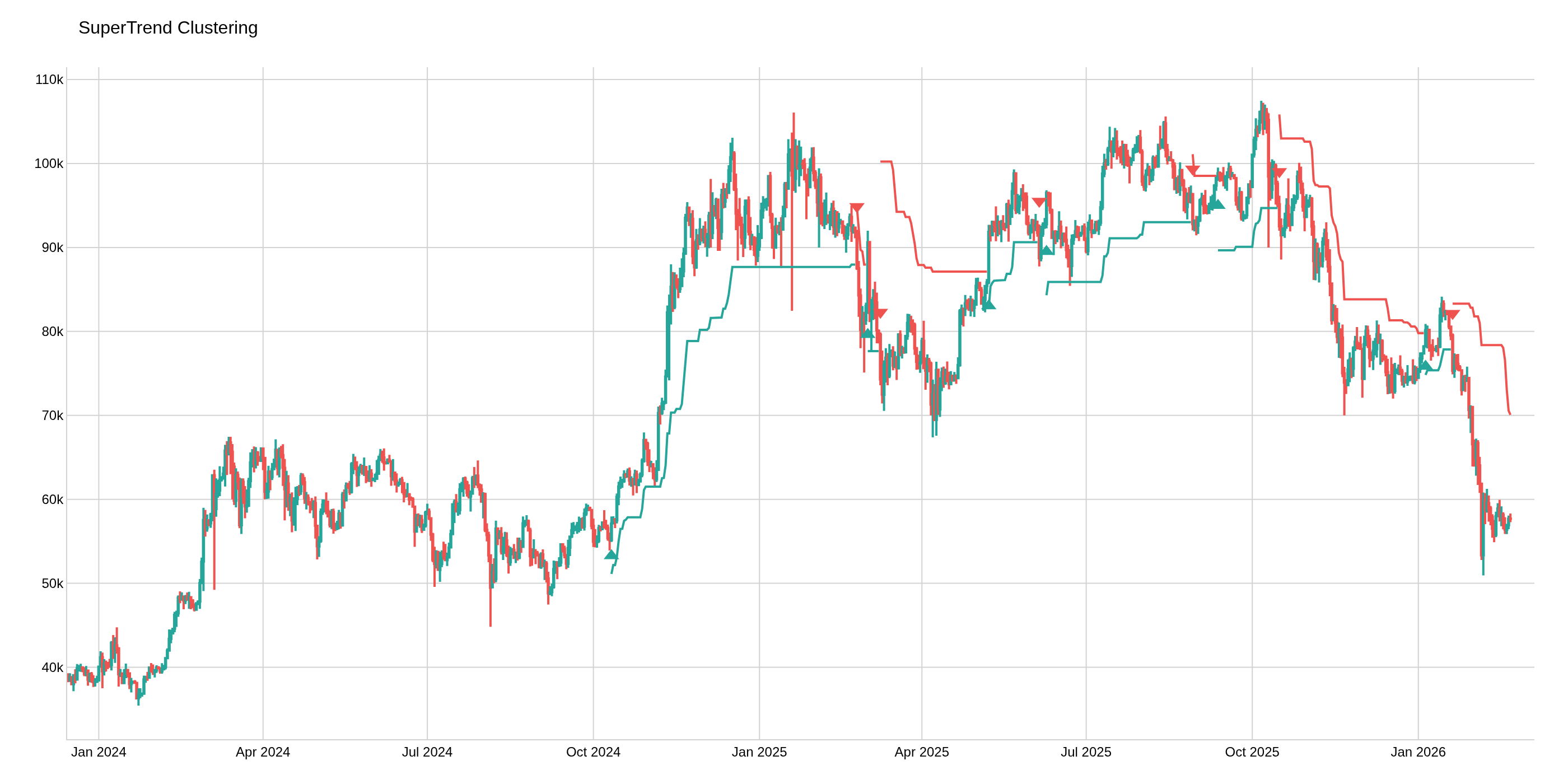

SuperTrend Clustering

🔴 Lagging — ≈ atr_length / 2 bars

Warmup: atr_length bars (default: 14 bars (atr_length=14))

When you want the optimal SuperTrend factor selected automatically. K-means clustering finds the best multiplier from price data, removing guesswork from parameter tuning.

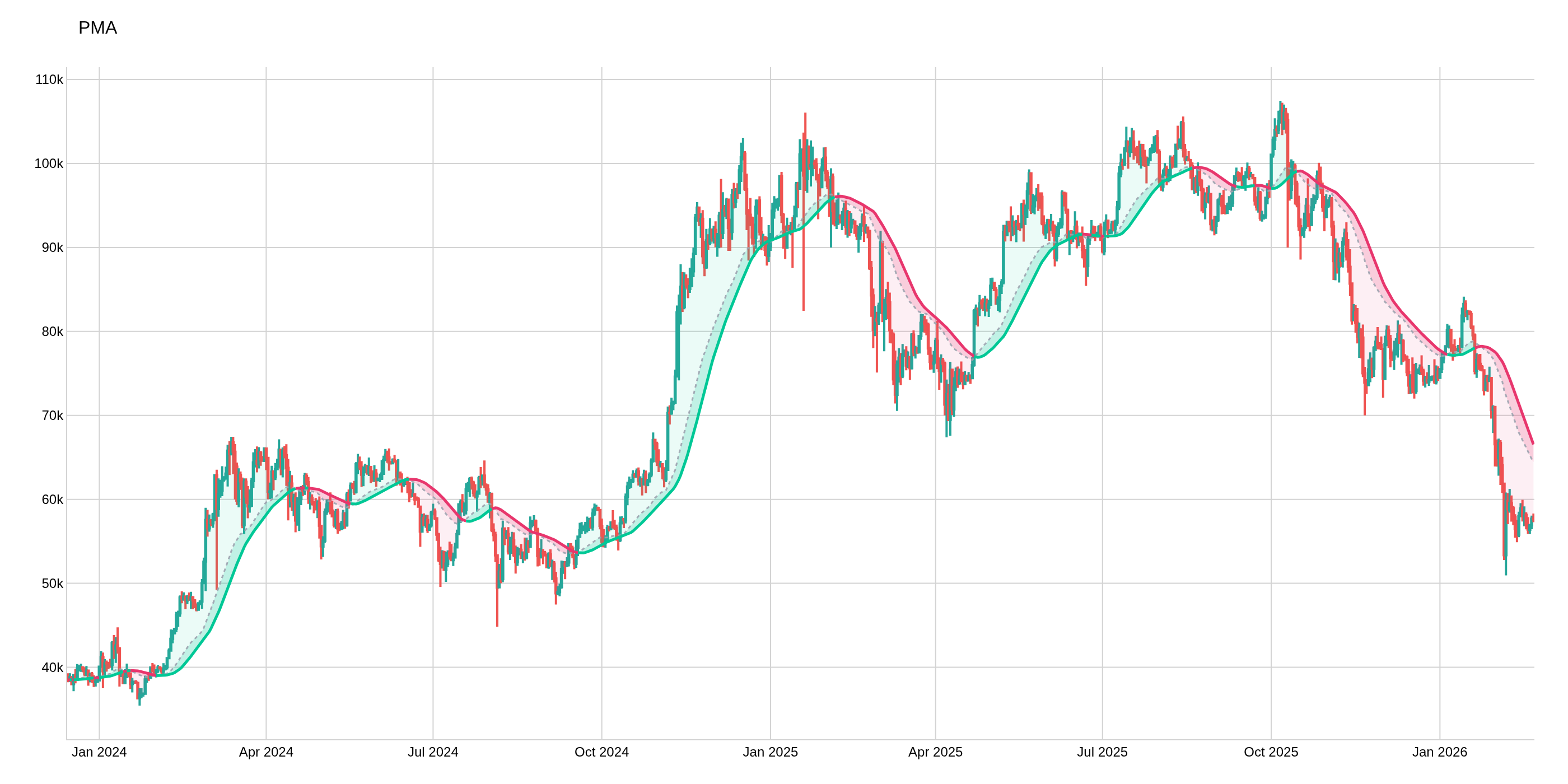

Pulse Mean Accelerator (PMA)

🔴 Lagging — ≈ ma_length / 2 bars

Warmup: max(ma_length, accel_lookback) bars (default: 32 bars (ma_length=20, accel_lookback=32))

An acceleration-aware moving average that adapts its offset based on price momentum. Use it when you want a trend line that tightens during acceleration and loosens during deceleration.

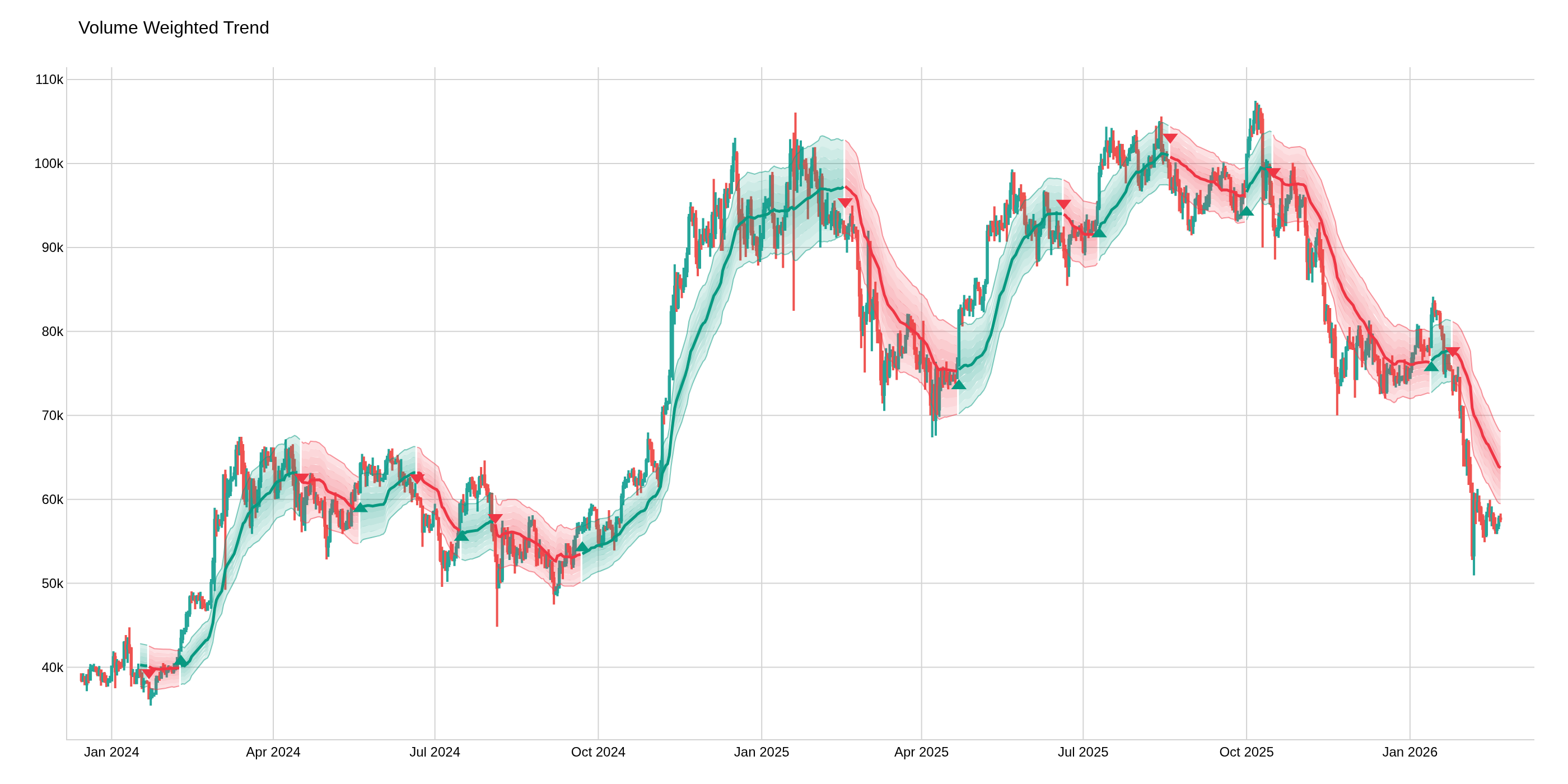

Volume Weighted Trend (VWT)

🔴 Lagging — ≈ vwma_length / 2 bars

Warmup: vwma_length bars (default: 34 bars (vwma_length=34))

Combines price trend with volume confirmation. Use it when you want trend signals that are validated by volume — useful for filtering out low-conviction moves.
