Range Intelligence Suite

Real-time Indicator

Consolidation detection triggers as soon as rolling range width falls below the ATR-based threshold.

Event	Lag	Detail
Range detection	≈ length bars	Requires length bars of history to compute ATR and rolling extremes (default 20)
Volume profile	0 bars	Built incrementally from the bars inside the detected range
Sweep detection	0 bars	Checked in real-time as price pierces and reverts from range boundaries
Breakout	0 bars	Confirmed on the bar where close crosses range high/low

Formula for custom params: lag ≈ length (ATR / range-width warm-up)

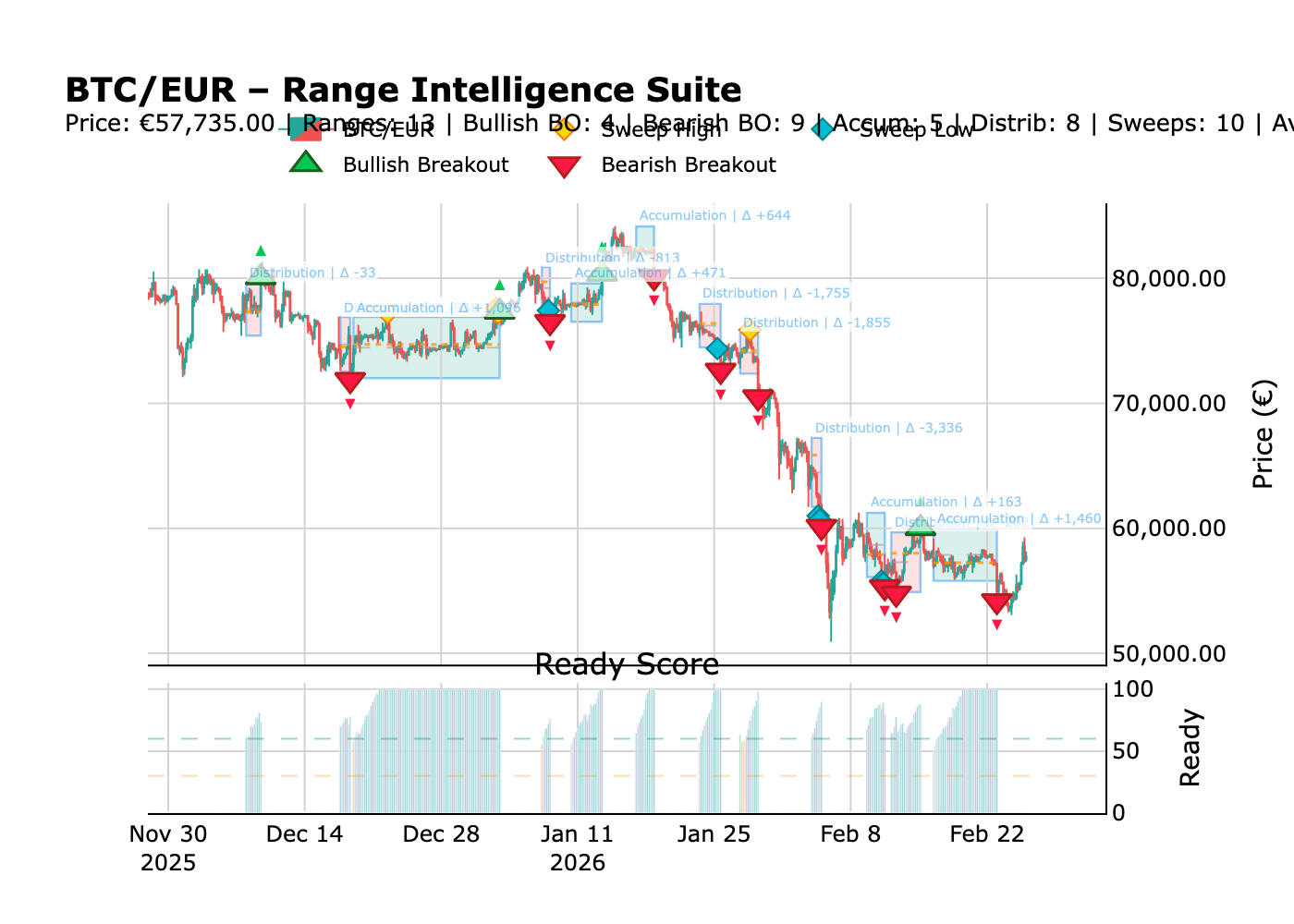

Range Intelligence Suite detects periods of price consolidation by comparing the rolling range width to the Average True Range (ATR), then enriches each detected range with a volume profile, Point of Control (POC), net delta, liquidity sweep counts, and a breakout-readiness score.

How it works:

1. Compute ATR with EMA-style smoothing over length bars
2. Calculate rolling highest high and lowest low over length bars
3. A consolidation range starts when range_width < sensitivity × ATR
4. Distribute volume across vp_rows horizontal bins within the range (buy vs sell)
5. Track the Point of Control (POC) — the bin with the highest volume
6. Accumulate net delta (buy volume − sell volume) for state classification
7. Detect liquidity sweeps — price briefly pierces a boundary but closes back inside
8. Compute a ready score (0–100) based on duration and delta imbalance
9. Breakout confirmed when close crosses above range high (+1) or below range low (−1)
10. Optionally hide older ranges that overlap with newly detected ones

def range_intelligence(
    data: Union[PdDataFrame, PlDataFrame],
    length: int = 20,
    sensitivity: float = 4.0,
    vp_rows: int = 10,
    hide_overlaps: bool = True,
    open_column: str = "Open",
    high_column: str = "High",
    low_column: str = "Low",
    close_column: str = "Close",
    volume_column: str = "Volume",
) -> Union[PdDataFrame, PlDataFrame]:

Example

from pyindicators import (
    range_intelligence,
    range_intelligence_signal,
    get_range_intelligence_stats,
)

# Calculate Range Intelligence
df = range_intelligence(df, length=20, sensitivity=4.0, vp_rows=10)

# Extract breakout signal
df = range_intelligence_signal(df)

# Get statistics
stats = get_range_intelligence_stats(df)
print(f"Total ranges: {stats['total_ranges']}")
print(f"Bullish breakouts: {stats['bullish_breakouts']}")
print(f"Bearish breakouts: {stats['bearish_breakouts']}")
print(f"Avg ready score: {stats['avg_ready_score']}")

Output Columns:

• ri_active: 1 while inside a consolidation range, else 0
• ri_high / ri_low: Upper and lower boundary of the active range
• ri_mid: Midpoint of the range
• ri_poc: Point of Control — price level with the highest volume
• ri_delta: Cumulative net delta (buy − sell volume) within the range
• ri_state: "Accumulation" (positive delta) or "Distribution" (negative delta)
• ri_ready: Ready score 0–100 — gauge of breakout imminence
• ri_sweep_high: 1 when a high-side liquidity sweep occurs
• ri_sweep_low: 1 when a low-side liquidity sweep occurs
• ri_breakout: +1 bullish breakout, −1 bearish breakout, 0 neutral
• ri_duration: Bars since the current range started
• ri_signal: Trading signal from range_intelligence_signal (+1/−1/0)

Parameters:

Parameter	Default	Description
length	20	Lookback period for ATR and rolling extremes
sensitivity	4.0	ATR multiplier threshold — lower values detect tighter ranges
vp_rows	10	Number of horizontal volume-profile bins
hide_overlaps	True	Discard earlier ranges that overlap with a newly detected range

Range State:

State	Meaning
Accumulation	Net delta is positive — buying pressure dominates
Distribution	Net delta is negative — selling pressure dominates

Signal Values (from range_intelligence_signal):

• 1: Bullish breakout — close above range high
• 0: Neutral — no breakout
• -1: Bearish breakout — close below range low

Ready Score:

The ready score (0–100) combines two components:

• Duration component (50%): (duration / length) × 50 — longer consolidation increases readiness
• Delta imbalance component (50%): (|net_delta| / recent_volume) × 50 — stronger imbalance suggests directional intent

Higher values indicate the range is more likely to produce an imminent breakout.

Statistics (from get_range_intelligence_stats):

Key	Description
total_ranges	Total number of completed ranges
bullish_breakouts	Count of bullish breakouts
bearish_breakouts	Count of bearish breakouts
accumulation_ranges	Ranges ending in accumulation state
distribution_ranges	Ranges ending in distribution state
total_sweep_highs	Total high-side liquidity sweeps
total_sweep_lows	Total low-side liquidity sweeps
avg_ready_score	Average ready score at breakout
avg_duration	Average range duration in bars
